What Is a Deionized Water System?
A deionized water system removes positively charged ions (cations such as calcium, magnesium, sodium, iron) and negatively charged ions (anions such as chloride, sulfate, bicarbonate, silica) from water using ion exchange resin. The process exchanges these ions for hydrogen (H+) and hydroxide (OH−), which combine to form additional water molecules — leaving behind water with extremely low dissolved solids.
The result is water measured not in parts per million of contamination, but in megohm-centimeters of electrical resistivity. Standard tap water typically has a resistivity of 1,000–10,000 ohm-cm. Type I deionized water — the highest grade — approaches the theoretical maximum of 18.2 megohm-cm. That’s a thousand-fold reduction in dissolved ions, and it’s what makes DI water essential for the applications below.
DI Water vs. Reverse Osmosis vs. Distilled Water
The three most common ways to produce high-purity water work differently and suit different applications. The table below compares them on the factors that usually drive the decision.
| Factor | Deionization (DI) | Reverse Osmosis (RO) | Distillation |
|---|
| Typical purity | Up to 18.2 MΩ-cm (Type I) | 95–99% of dissolved solids removed | High; excellent for organics & microbes |
| Removes best | Dissolved ions (cations & anions) | Ions, most organics, particulates, microbes | Nearly everything, incl. organics & pyrogens |
| Throughput | High; instant on-demand flow | Moderate; limited by membrane area & pressure | Low; slow batch process |
| Operating cost | Low–moderate; rises with feedwater TDS | Low per gallon; some water sent to drain | High; energy-intensive boiling |
| Best for | Lab, rinse, plating, electronics, polishing after RO | Bulk pre-treatment, brackish / high-TDS feed | Small-volume uses needing organic / pyrogen-free water |
In practice the three are complementary: many high-purity systems use RO followed by polishing DI to reach Type I water at lower operating cost than distillation. See our reverse osmosis systems for the pre-treatment side.
DI Water System Applications We Serve
Deionized water requirements vary dramatically by industry. A semiconductor fab needs 18.2 megohm-cm continuously; a parts-washing rinse station may only need 1 megohm-cm. Mueller Water sizes and configures systems to the specification that actually matters for your process.
Industrial Manufacturing & Metal Finishing
- Final rinse stations for plating, anodizing, and electropolishing — DI water prevents spotting and ion redeposition on finished parts.
- Parts washing for precision machined components, optics, and medical devices.
- Cooling water for induction heating and laser systems where mineral scaling damages equipment.
- Cutting fluid makeup and coolant systems.
Laboratory & Analytical
- Reagent water for clinical, environmental, and research laboratories meeting NCCLS Type I, II, and III or ASTM Type I–IV specifications.
- Glassware washing and final rinse.
- Buffer and standard solution preparation.
- HPLC, ICP-MS, and trace analysis feed water where dissolved ion interference must be eliminated.
Pharmaceutical & Life Sciences
- USP Purified Water (PW) production as an ingredient and rinse water in pharmaceutical manufacturing.
- Pre-treatment for Water for Injection (WFI) systems.
- Biotech process water, media preparation, and cleaning validation.
Electronics, Semiconductor & Optics
- Wafer rinsing and PCB assembly cleaning where any ionic residue causes shorts or corrosion.
- Lens grinding and optical coating operations.
- Final rinse for precision components requiring residue-free drying.
Power Generation & Industrial Steam
- Boiler feedwater for high-pressure steam systems where silica and conductivity must be controlled.
- Combustion turbine inlet cooling and NOx control water injection.
- Make-up water for closed-loop cooling systems.
Other Common Applications
- Battery manufacturing (especially EV battery cell production), where ionic contamination affects cell performance and lifespan.
- Window washing and exterior cleaning where mineral spotting must be eliminated.
- Humidification and steam injection for HVAC and clean rooms.
Types of DI Water Systems Mueller Provides
Different ion exchange configurations produce different water qualities at different operating costs. The right choice depends on your required purity, your daily volume, and whether you want capital equipment on site or a service-based exchange program.
Mixed-Bed Deionization Systems
Mixed-bed DI combines cation and anion exchange resins in a single vessel. Because the resins are intimately mixed, water passing through encounters cation and anion exchange sites repeatedly along the bed depth, producing the highest practical purity from ion exchange alone — typically 16–18 megohm-cm resistivity.
Best for: polishing applications and small-to-medium flow requirements where Type I water quality is essential. Mixed-bed is the standard final-stage technology for laboratory, semiconductor rinse, and pharmaceutical USP water systems.
Tradeoff: regeneration is more complex than separate-bed systems because the resins must be hydraulically separated before regenerating with acid and caustic, then re-mixed. This is why mixed-bed systems are often paired with our portable exchange program — Mueller handles the regeneration off-site at our regeneration facility.

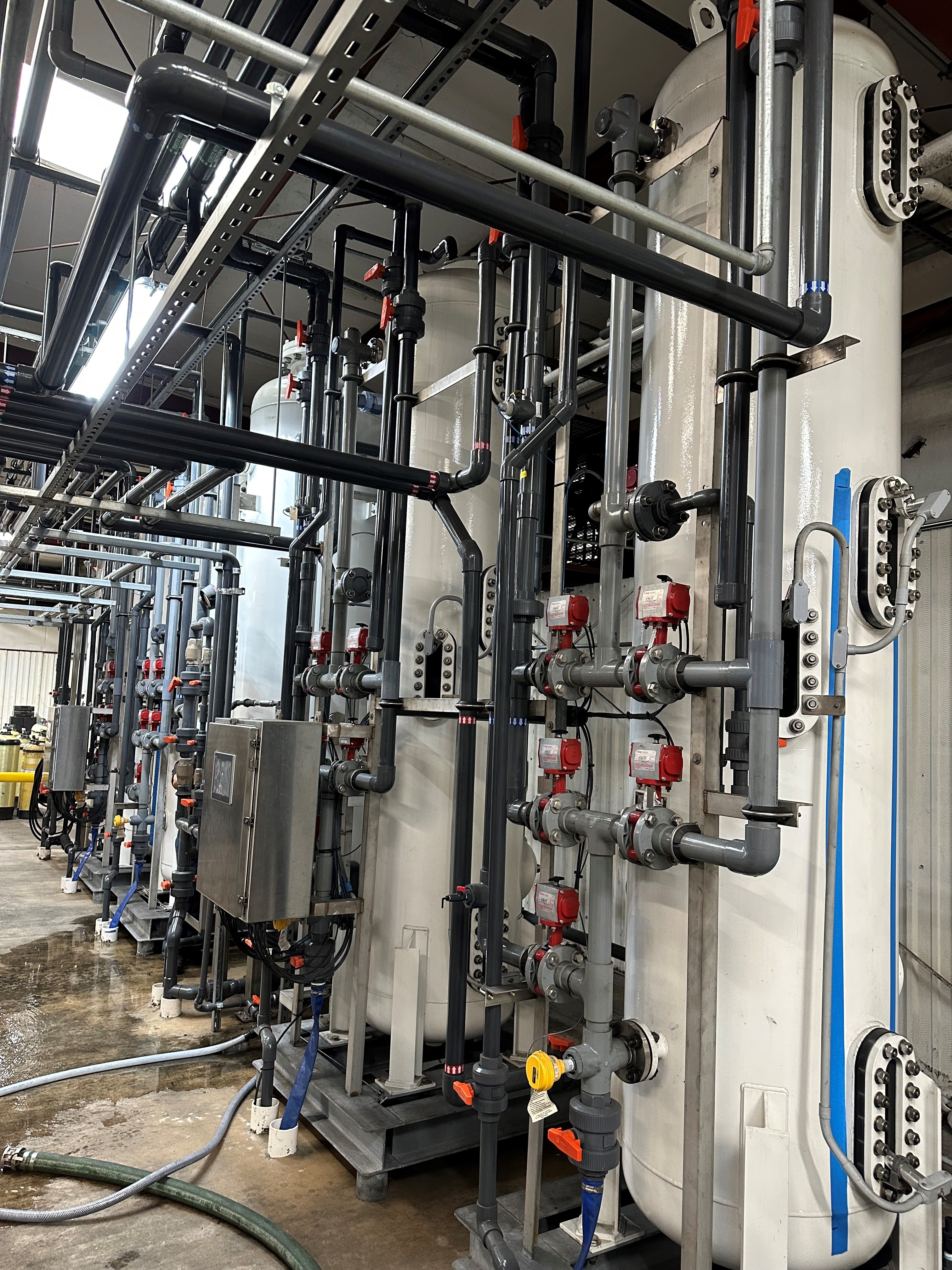

Separate-Bed (Two-Bed) Deionization Systems
Separate-bed DI uses two vessels in series: a cation exchanger first (which converts dissolved salts to their corresponding acids), followed by an anion exchanger (which removes those acids). The result is high-quality DI water typically in the 100,000–1,000,000 ohm-cm range — excellent for most industrial applications, though not as pure as mixed-bed.
Best for: higher-flow industrial applications where 1 megohm-cm or better is sufficient, and where operational simplicity matters. Separate-bed systems are easier to regenerate on site, making them practical for facilities with steady daily DI water demand.
Tradeoff: CO2 produced in the cation bed can pass through and reduce final pH and resistivity. For applications requiring higher purity, a degasifier or polishing mixed-bed stage is added downstream.

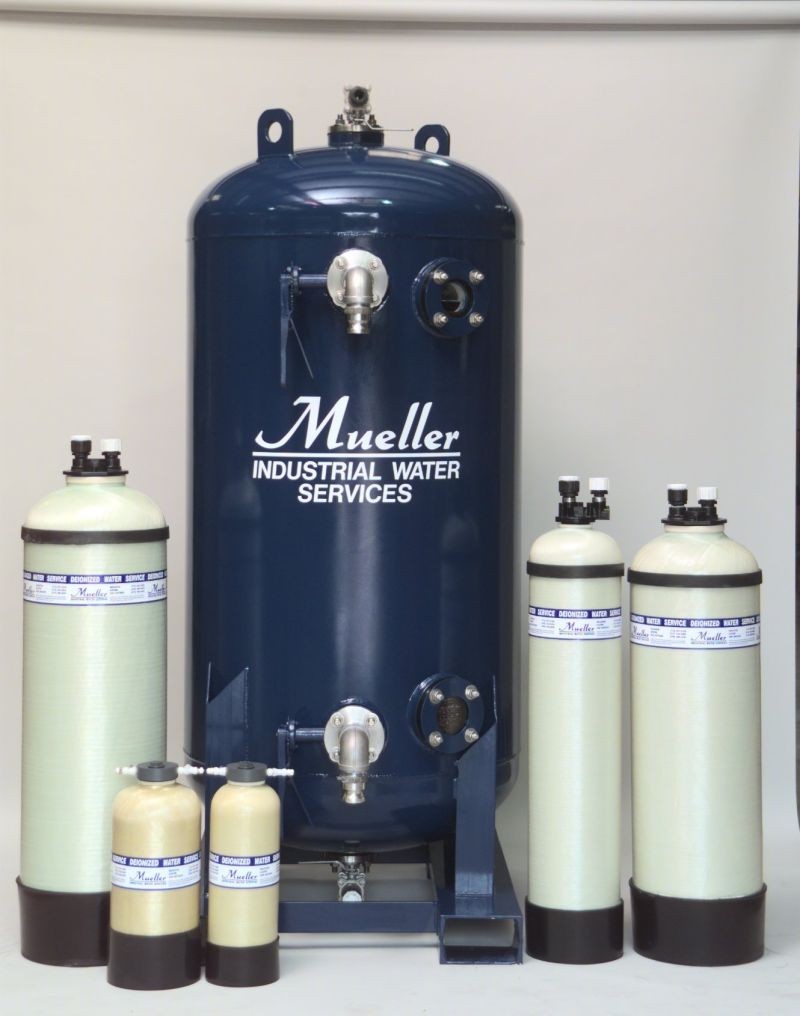

Portable Exchange Deionization (PEDI)
Portable DI tank exchange — sometimes called PEDI, DI exchange tanks, or service deionization — is a fully managed solution. You install ion exchange tanks on your site; Mueller delivers, monitors, and exchanges them on a regular schedule or as resistivity drops below your specification. Exhausted tanks are returned to our regeneration facility for chemical recharge and quality testing.
Customers choose tank exchange for three reasons:
- No capital investment. You pay for service, not equipment — well suited to facilities that can’t justify capex for a regenerable on-site system.
- No regeneration chemicals on site. Concentrated acid and caustic stay at our regeneration facility, not yours. This simplifies safety compliance, permitting, and waste disposal.
- Predictable cost and uptime. Tank exchanges are scheduled; backup tanks are standard. You never run out of DI water due to regeneration downtime.
Tank sizing ranges from small cabinet-style units producing a few hundred gallons per day for laboratories, up to large 30+ cubic foot tanks for industrial users producing tens of thousands of gallons per day. Mueller’s Texas-wide service footprint — Houston, Austin, San Antonio, and DFW — means we can support exchange schedules anywhere in the state.
Electrodeionization (EDI) Systems
Electrodeionization combines ion exchange resin with an electrical current and ion-selective membranes to continuously remove ions and regenerate the resin in a single step — without acid or caustic regeneration chemicals. EDI is typically installed downstream of reverse osmosis to produce continuous high-purity water (10–17 megohm-cm) for applications where steady-state operation and zero chemical handling are priorities.
Best for: pharmaceutical USP Purified Water systems, power plant make-up water, and high-volume industrial users transitioning away from chemical regeneration. EDI has higher capital cost than conventional DI but lower operating cost over the long term.
DI Tank Exchange Service
For facilities that don’t want to own and regenerate equipment on site, Mueller Water runs a full DI tank exchange service across Texas. We deliver charged DI exchange tanks, monitor resistivity, and swap exhausted tanks on a scheduled or on-demand basis — so you never run out of high-purity water and never handle regeneration chemicals. Exhausted tanks return to our regeneration facility for chemical recharge, quality testing, and redeployment.
DI tank exchange — also called portable exchange deionization (PEDI) or service deionization — suits laboratories, electronics and metal-finishing rinse lines, and any operation with steady demand below roughly 5,000–10,000 gallons per day, where a service program costs less than a regenerable on-site system. Tank sizing ranges from small cabinet units to 30+ cubic-foot industrial tanks, with local DI tank exchange service from our Houston, Austin, San Antonio, and Dallas–Fort Worth branches. See our portable DI exchange (PEDI) services for delivery schedules and tank specifications.
How to Choose the Right DI Water System
The right system depends on five factors. We work through these with every customer during system sizing:
1. Required Water Quality
The purity specification — usually expressed as resistivity in megohm-cm or conductivity in microsiemens/cm — drives technology selection. A general guide:
| Water Grade | Resistivity | Typical Technology | Typical Use |
|---|
| Type I (ultrapure) | 18.2 MΩ-cm | RO + polishing mixed-bed DI + 0.2µ filter | Semiconductor, HPLC, trace analysis |
| Type II | ≥1 MΩ-cm | Mixed-bed DI or RO + EDI | General lab, clinical, USP PW prep |
| Type III (working DI) | ≥0.1 MΩ-cm | Two-bed DI or single-pass RO | Rinse water, glassware, industrial cooling |
| Type IV | ≥0.2 µS/cm cond. | Single-pass DI or RO | General industrial wash, cooling makeup |
Reference: ASTM D1193 reagent water specifications; NCCLS C3-A2.
2. Daily Volume & Peak Flow
DI capacity is rated in gallons of throughput before the resin must be regenerated. A 1 cubic foot tank treating moderately mineralized Texas tap water might produce 1,500–3,500 gallons before exhaustion. Higher TDS source water — common in parts of South Texas — reduces tank life proportionally. Peak flow ratings determine vessel sizing independently of capacity; a system can have plenty of capacity but inadequate flow if undersized.
3. Source Water Chemistry
Feed water analysis tells us what the resin actually has to remove. Important parameters include total dissolved solids (TDS), hardness, alkalinity, silica, chlorine and chloramine, iron, and TOC. Most Texas municipal water requires pre-treatment — typically a carbon filter for chlorine and a softener for hardness — before DI to protect the resin and extend capacity.
4. Capital vs. Service Preference
On-site regenerable systems require capital investment, regeneration chemical handling, and waste neutralization but have lower per-gallon operating cost at high volumes. Portable tank exchange has zero capital cost and predictable monthly service billing, with breakeven typically favoring exchange below 5,000–10,000 gallons per day depending on water quality requirements.
5. Footprint & Utilities
Permanent systems require floor space, power, drain access, and (for regenerable systems) chemical storage. Exchange tanks need only floor space and plumbing connections. We site-survey before recommending a configuration.
Pre-treatment: Why It Matters for DI Performance
Deionization resin is expensive and sensitive. Sending raw municipal water directly to a DI system shortens resin life dramatically and increases operating cost. Standard pre-treatment for Texas water typically includes:
- Multimedia or cartridge filtration to remove suspended solids and turbidity that foul the resin bed.
- Activated carbon filtration to remove chlorine and chloramines, which oxidize and degrade ion exchange resin.
- Water softening to remove calcium and magnesium, which would otherwise consume cation resin capacity disproportionately.
- Reverse osmosis (for higher-purity applications) to remove 95–98% of dissolved solids before DI, which can extend mixed-bed regeneration intervals by 6–8 times.
For most industrial DI applications, a properly designed pre-treatment train will more than pay for itself through extended resin life and reduced regeneration frequency.
Mueller Water DI Services & Support
Equipment is only part of what makes a DI water system reliable. Mueller Water provides:
Portable DI Tank Exchange
Scheduled and on-demand exchange of exhausted tanks across our Texas service area. Tanks are regenerated at our facility to documented quality specifications and tested before redeployment. Mixed-bed, separate-bed (cation and anion), and specialty resin configurations available.
On-Site System Design, Installation & Commissioning
From single-skid laboratory systems to large central plant DI for industrial users, we engineer and install complete systems including pre-treatment, distribution piping, monitoring instrumentation, and storage.
Resin Regeneration Services
Standalone resin regeneration for customers with their own DI vessels who need off-site chemical regeneration without the complexity of running an in-house regeneration facility.
Service, Diagnostics & Repair
Resistivity monitor calibration, valve and control rebuilds, resin testing and replacement, and troubleshooting of existing DI systems regardless of original manufacturer.
Mobile Rental DI Equipment
Temporary DI capacity for project work, system outages, seasonal peak demand, or evaluation of DI water for a new process — without committing to permanent installation.
Why Texas Companies Choose Mueller Water for DI
- Four Texas service locations: Houston headquarters, Austin (Pflugerville), San Antonio (Converse), and Dallas–Fort Worth (Grand Prairie). On-call exchange service across the state.
- Family-owned and operated with decades of water treatment experience. Direct technical support — not a call center.
- Vendor-agnostic engineering. We specify the right technology for the application, not whatever we have the deepest margin on.
- Full water treatment capability. DI is rarely a standalone solution. We design integrated systems combining filtration, softening, RO, and DI as the application requires.
- In-house regeneration facility. Tank exchange is supported by our own regeneration operation — not subcontracted.
Request a DI Water System Quote
Whether you’re sizing a new DI installation, evaluating a switch to tank exchange, or troubleshooting an existing system, we can help. A short conversation about your water source, daily volume, and quality specification is usually all it takes to scope an initial recommendation.
Contact Mueller Water: Houston (713) 467-3226 · San Antonio (210) 490-4040 · Austin (512) 444-4404 · Dallas/Fort Worth (214) 467-0029 · Toll-free 1-888-678-6411
Frequently Asked Questions
What's the difference between deionized water and distilled water?
Both are highly purified, but they’re produced differently. Distilled water is made by boiling water and condensing the steam, leaving most contaminants behind. Deionized water is made by passing water through ion exchange resin to remove dissolved ions. DI is typically more cost-effective at scale and produces higher resistivity at lower energy cost; distillation has advantages for removing certain organics and microbiological contamination. Many high-purity systems use both, or pair DI with reverse osmosis for similar results to distillation.
How long does a DI tank last between exchanges?
It depends entirely on three factors: tank size, source water quality, and your daily water usage. A standard 3.6 cubic foot mixed-bed exchange tank on softened, dechlorinated municipal water might produce 4,000–8,000 gallons before resistivity drops below specification. The same tank on harder or higher-TDS feedwater could exhaust in half that volume. We size tanks based on a measured feedwater analysis so exchanges land on a predictable schedule.
Can DI water replace distilled water in my application?
In most industrial, laboratory, and rinse applications, yes. For specific regulated uses — certain pharmaceutical preparations, some medical device applications — the official specification may require distillation. For everything else, properly produced DI water meets or exceeds distilled water purity at lower operating cost.
Why does DI water have a low pH out of the system sometimes?
Pure deionized water rapidly absorbs carbon dioxide from the atmosphere, which reacts to form carbonic acid and depresses pH. This is a measurement artifact, not a contamination issue — the DI water is still ionically pure. Closed-loop, recirculated DI systems and nitrogen-blanketed storage tanks minimize this effect for sensitive applications.
Do I need to soften my water before deionization?
In almost all cases, yes. Hardness ions (calcium and magnesium) consume cation exchange capacity faster than other ions and can also cause scaling in downstream equipment. Pre-softening dramatically extends DI tank life and is one of the simplest ways to reduce operating cost. The exception is very soft source water (under about 3 grains per gallon) where the economics may not justify a softener.
How do I know if I need Type I, II, or III DI water?
Start with the equipment manual or process specification — most laboratory instruments, plating lines, and pharmaceutical processes specify a minimum resistivity or conductivity. If no spec exists, we can help you evaluate: trace analysis and semiconductor applications need Type I; most general lab and pharmaceutical pre-treatment uses Type II; industrial rinse and most cooling applications work with Type III or IV. Over-specifying purity wastes operating cost; under-specifying causes process problems. Getting this right is part of system design.
Does Mueller service DI systems we didn't install?
Yes. Our service technicians work on DI systems from all major manufacturers. Resin replacement, regeneration, conductivity/resistivity sensor calibration, and valve and control repairs are routine across brands. We’re often called in to take over service contracts when an original installer is no longer responsive.
