Equipment Solutions

Asset Number: MWSWS003  |  Price: Call for Pricing

Details:

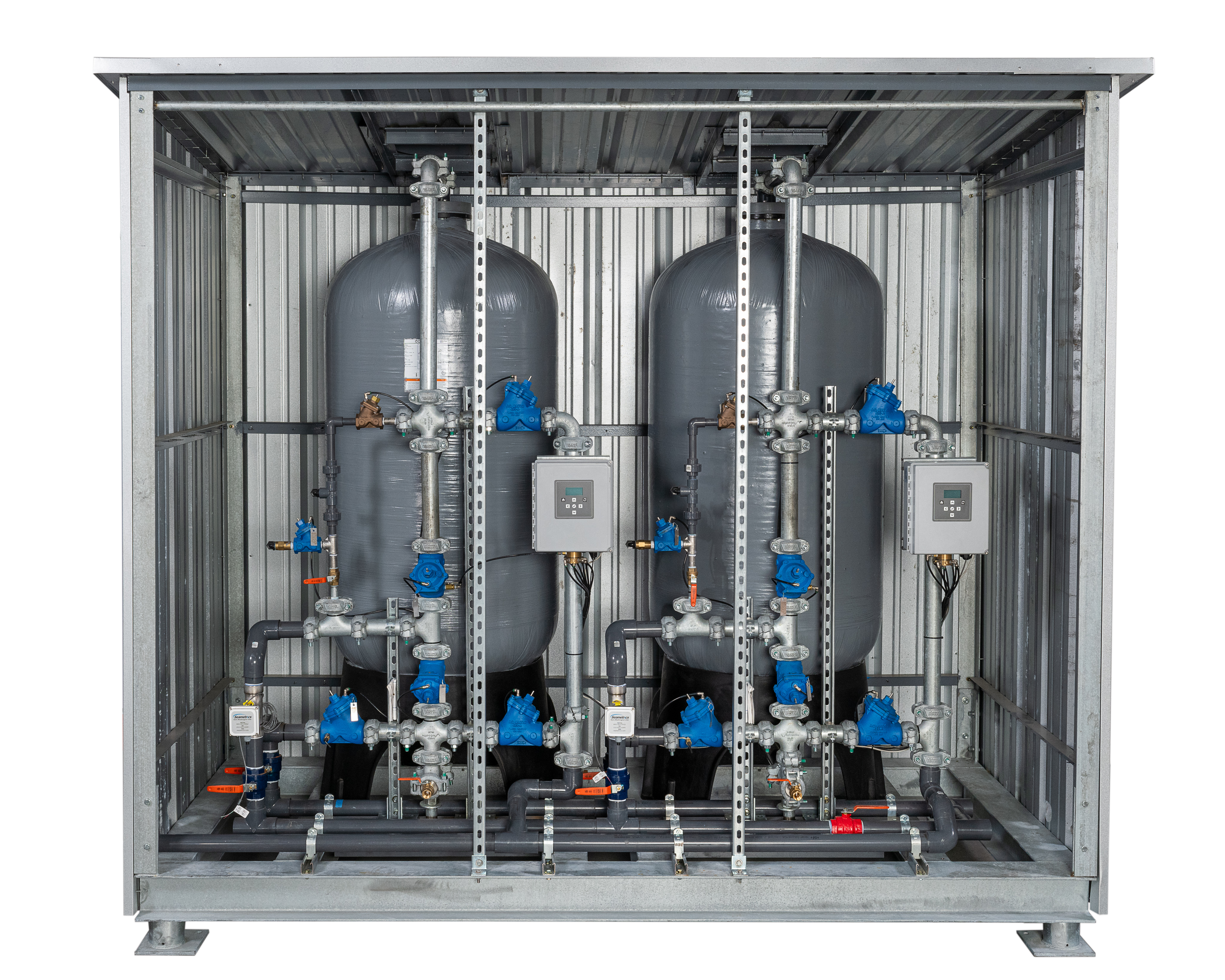

This duplex softener system comes in a self-contained, skidded enclosure. It can be configured in either parallel or alternating modes. The system supports a maximum allowable hardness of 30 gr/gal and a maximum treated flow rate of 100 GPM. Each fiberglass tank is equipped with its own controller. The system is pre-piped with 2" inlet, outlet, and drain connections. Additionally, the unit is prewired and requires a single 120VAC power supply for the controllers. The system can be supplied with brine tanks of any size to meet specific requirements.

Specifications:

• Max Flow Rate: 100 GPM
• Inlet: 2" Victaulic Grooved
• Outlet: 2" Victaulic Grooved
• Drain: 2" Victaulic Grooved
• Brine Connection: 1"
• Power: 120VAC

Specifications:

• Max Flow Rate: 300 GPM
• Inlet: 3" Victaulic Grooved
• Outlet: 3" Victaulic Grooved
• Drain: 2" Victaulic Grooved
• Brine Connection: 1"
• Power: 120VAC

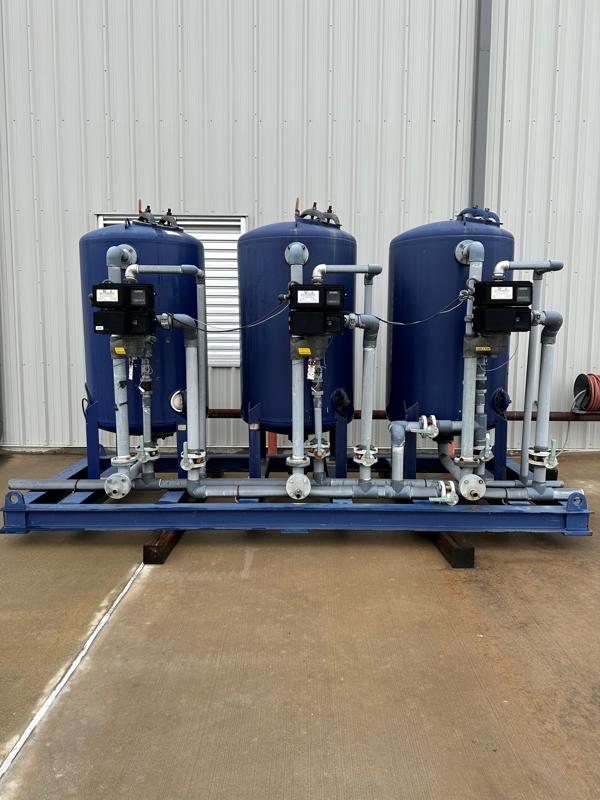

Triplex Water Softener Skid

Asset Number: MWSWS001

Price: Call for Pricing

Details:

This triplex softener system comes mounted on a skid and can be configured in either parallel or alternating modes. It supports a maximum allowable hardness of 30 gr/gal and a maximum treated flow rate of up to 300 GPM. Each steel tank is equipped with its own controller. The system is pre-piped with 2" inlet, outlet, and drain connections. Additionally, the unit requires a single 120VAC power supply for the controllers. The system can be supplied with brine tanks of any size to meet specific requirements.

Specifications:

• Max Flow Rate: 200 GPM
• Inlet: 3" Flanged
• Outlet: 3" Flanged
• Drain: 2" Flanged
• Brine Connection: 1"
• Power: 120VAC

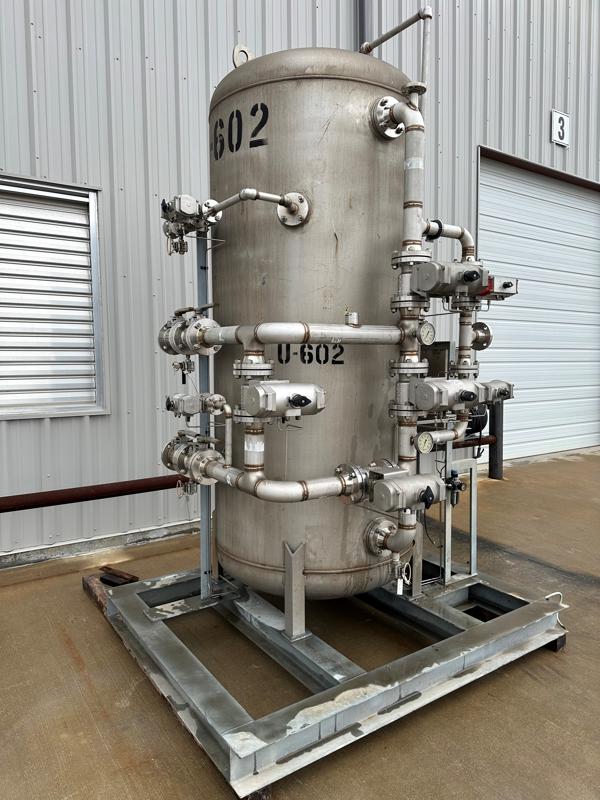

Simplex Water Softener / Condensate Polisher

Asset Number: MWSWS002

Price: Call for Pricing

Details:

This simplex softener system comes mounted on a skid. It supports a maximum allowable hardness of 30 gr/gal and a maximum treated flow rate of 200 GPM. The type 316 stainless steel tank is equipped with its own controller. The system is pre-piped with SS316 2" inlet, outlet, and drain connections. Additionally, the unit requires a single 120VAC power supply for the controller. The system can be supplied with brine tanks of any size to meet specific requirements.

Specifications:

• Max Flow Rate: 500 GPM
• Inlet: 4" 150# Raised Faced Weld Neck
• Outlet: 4" 150# Raised Faced Weld Neck
• Drain: 2" Flanged
• Brine Connection: 1" SCH 40 316SS
• Skid Dimensions: 18'L x 7'D x 10'-6"H
• Power: 120VAC

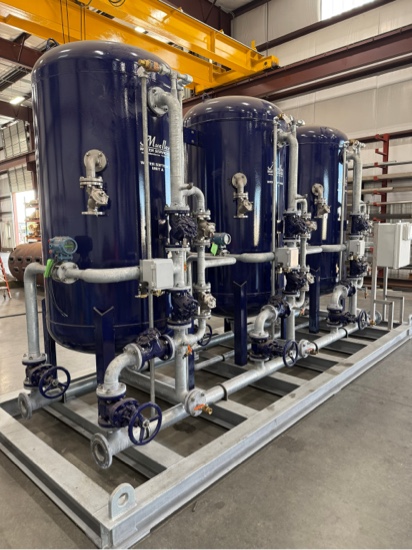

500 GPM Triplex Water Softener

Asset Number: MWSWS004

Price: Call for Pricing

Details:

This triplex softener system comes mounted on a galvanized steel skid and can be configured in either parallel or alternating modes. It supports a maximum allowable hardness of 30 gr/gal and a maximum treated flow rate of up to 500 GPM. Each steel tank is equipped with its own controller. The system is pre-piped with 4" inlet, outlet, and 2" drain connections. Additionally, the unit requires a single 120VAC power supply for the controllers. The system can be supplied with brine tanks of any size to meet specific requirements.

Specifications:

• Permeate Flow Rate: 260/150 GPM
• Inlet: 3" Victaulic Grooved
• Outlet: 3" Victaulic Grooved
• Drain: 2" Victaulic Grooved
• Pump Motor Power: 230/460 VAC

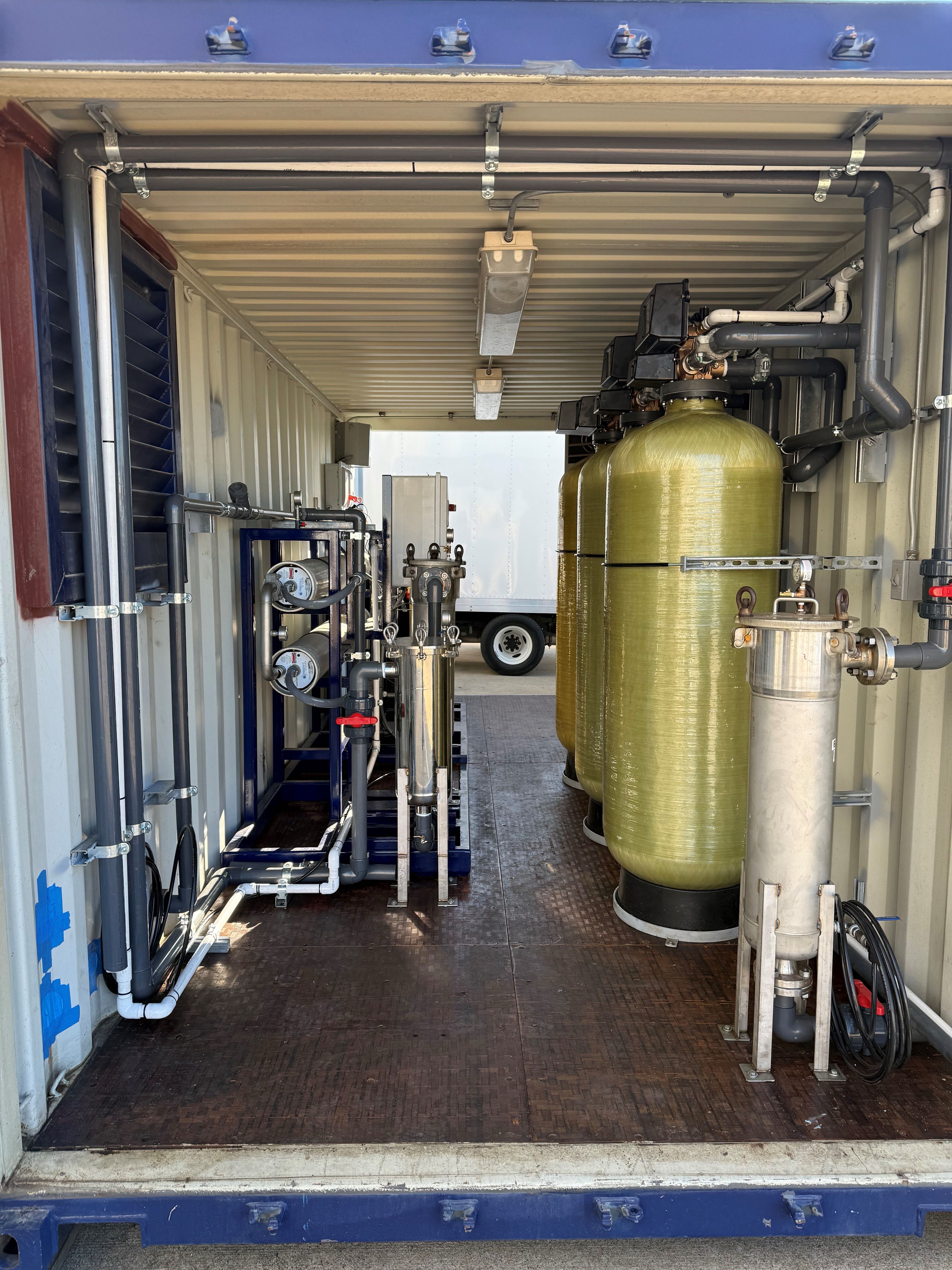

Reverse Osmosis Rental Skid Unit

Asset Number: MWRO001

Price: Call for Pricing

Details:

This reverse osmosis water treatment system is designed to produce at flowrates of up to 260 GPM in single pass mode and up to 150 GPM in double pass mode. System includes two activated carbon (AC) filters (AC-0401A/B). The RO system consists of two trains (RO-1 and RO-2), available to operate in single pass or double pass mode. Each RO train has a dedicated Tonkaflo high pressure feed pump. The RO-01 unit consists of ten housings with a 5:3:2 array. The RO-02 unit consists of five housings with a 3:2 array. Instrumentation includes feed pressure indicators, permeate pressure indicator, permeate high pressure switch, permeate flowmeter, and permeate conductivity meter.

Specifications:

• Permeate Flow Rate: 10 GPM
• Inlet: 1.5" SCH 80 PVC Flanged Connection
• Reject: 1" SCH 80 PVC
• Product: 3/4" SCH 80 PVC
• Activated Carbon Inlet: 1.5" SCH 80 PVC
• Softener Inlet: 1.5" SCH 80 PVC
• Skid Dimensions: 12'L x 3'D x 7'-4"H
• Shipping Weight: 1400 LBS
• Operating Weight: 2440 LBS
• Power Requirements: 480 VAC 3 Phase / 120 VAC 1 Phase for Softener and ACF

Reverse Osmosis Rental Skid Unit

Asset Number: MWRO002

Price: Call for Pricing

Details:

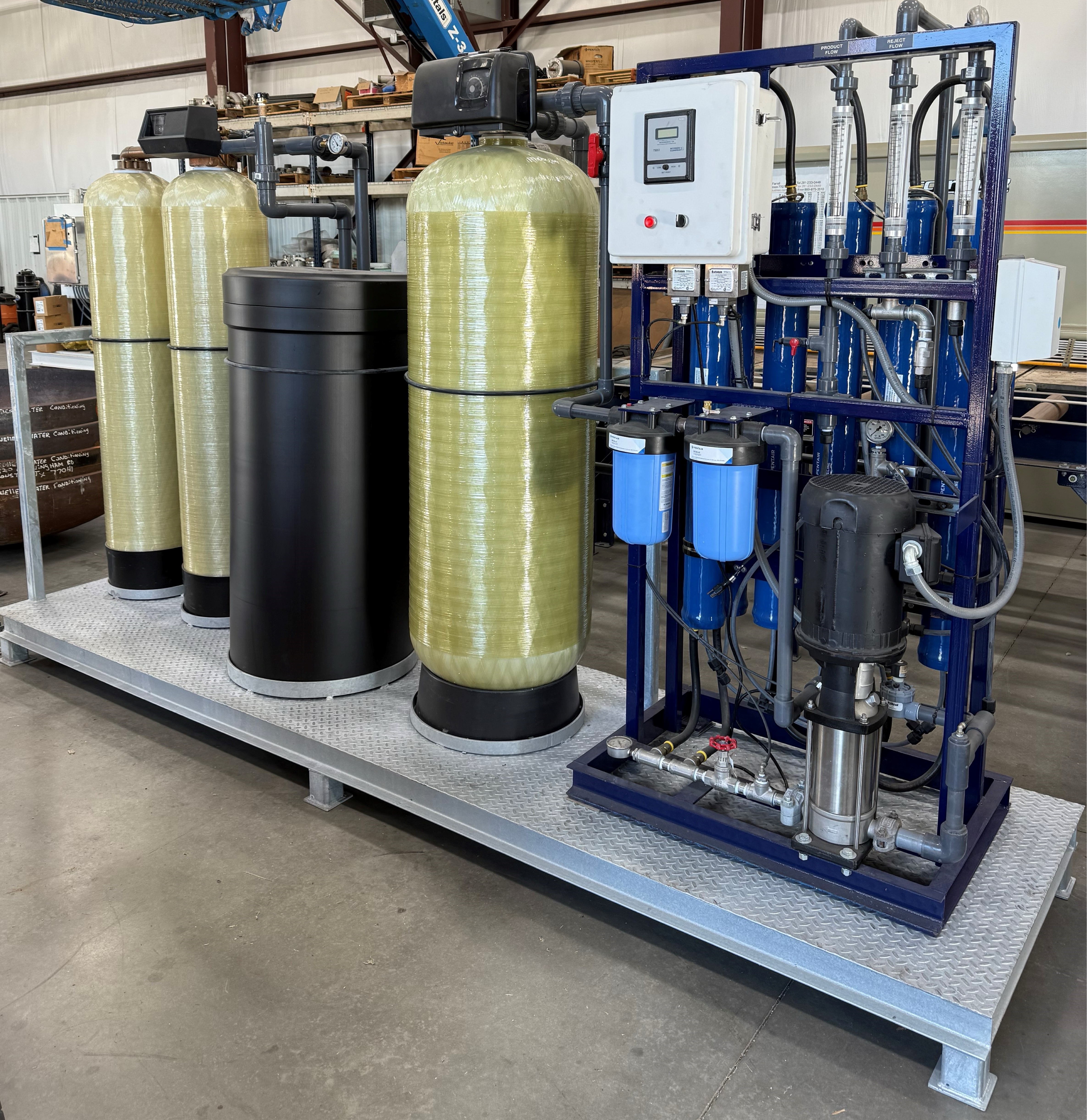

10 GPM Reverse Osmosis Skid with pretreatment. Incoming filtered water is softened with the WSF-90-95 Twin Alternating water softener, then passes through the automatic backwashing carbon filter ACF150-28 for dichlorination prior to reaching the 10 GPM Reverse Osmosis unit. Skid is ready to use for mobile applications. Inquire about use and application capabilities.

Specifications:

• Permeate Flow Rate: 30 GPM
• Inlet: 1.5" SCH 80 PVC Flanged Connection
• Outlet: 1.5" SCH 80 PVC Flanged Connection
• Drain: Combined Reject/Drain Line Connection
• Power Requirements: 480 VAC 3 Phase / 120 VAC 1 Phase for Softener and ACF

Reverse Osmosis Rental Skid Unit

Asset Number: MWRO003

Price: Call for Pricing

Details:

30 GPM Reverse Osmosis Skid with pretreatment. Incoming filtered water is softened with the WSF-90-95 Twin Alternating water softener, then passes through the automatic backwashing carbon filter ACF150-28 for dichlorination prior to reaching the 30 GPM Reverse Osmosis unit. Skid is ready to use for mobile applications. Inquire about use and application capabilities.
